Round Conductor Holders

Conductor holders for round conductors can be flexibly used.

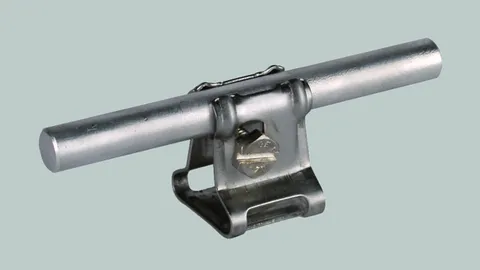

Conductor Holders DEHNgrip

Screwless StSt holder system with loose conductor routing.

Conductor Holders DEHNsnap

Plastic holder system with loose conductor routing.

Conductor Holders DEHNfix

Two-in-one system (fixes the holder and the conductor) with conductor holder DEHNquick, fixed conductor routing, UV-stabilised.

Conductor Holders DEHNhold

Conductor holder with a slotted saddle clamp for fixing round conductors, fixed conductor routing.
For use with different materials, e.g. Al, StSt, St/tZn and Cu.

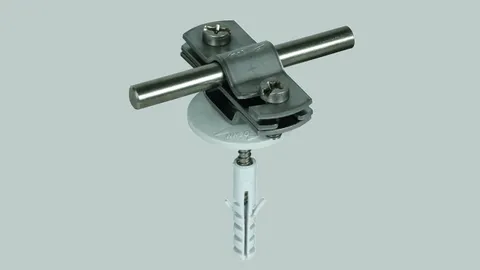

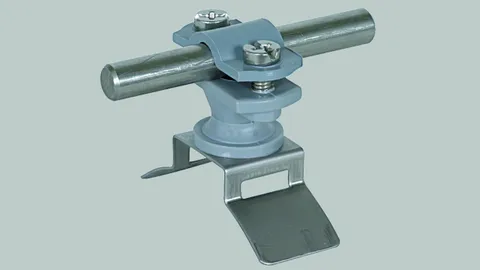

Conductor Holder with Cleat – Flat Design

Two-screw cleat with screws M6, for round and flat conductors.
With plastic (grey) cover disc.

Conductor Holders with Saddle Clamp and Flange

Complete unit with flange for installing conductors, fixed conductor routing.

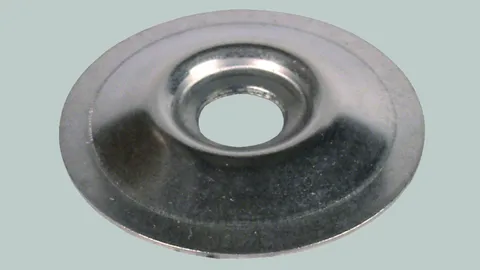

Cover Discs and Plastic Bases

Intermediate element for screwable / snap-on conductor holders and rod holders.

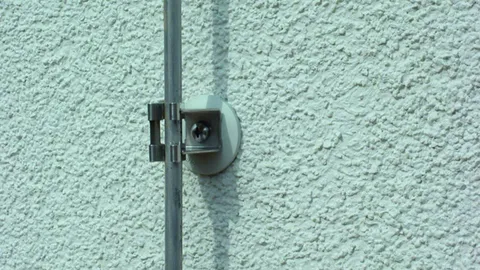

Conductor Holders for External Thermal Insulation Composite Systems

Two-screw clamp with M6 screws, fixed conductor routing.

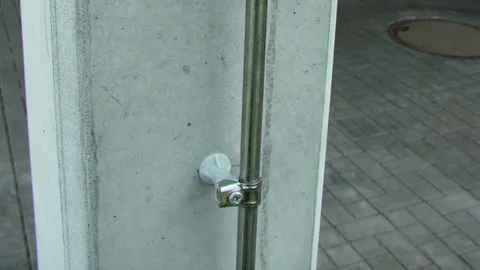

Conductor Holder with Claw

Conductor holder for wall mounting with clamping screw M6.
Fixed conductor leading.

Conductor Holders/Cleats for Flush Mounting

E.g. for flush mounting.

Conductor Holders for Downpipes

For installing down conductors on downpipes with fixed conductor routing.
All types are also suitable for plastic downpipes.

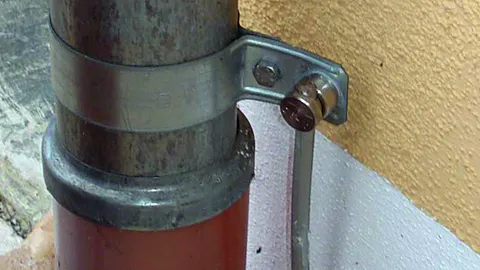

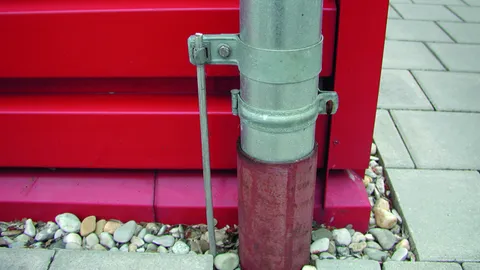

Downpipe Clamps

Pipe clamps for connecting downpipes to the lightning equipotential bonding according to IEC/EN 62305-3.
Connection possibilities for Rd, e.g. with KS connector (Part No. 301 000) or with clamping piece (Part No. 390 150) (depending on material).

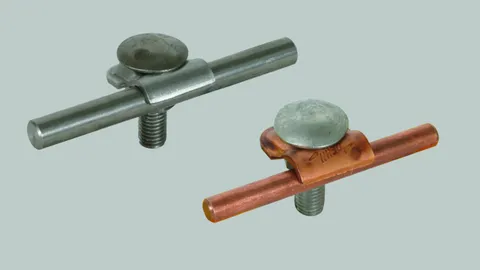

Clamping Piece Variants

For example as a connection with end piece for constructions or downpipe clamps.

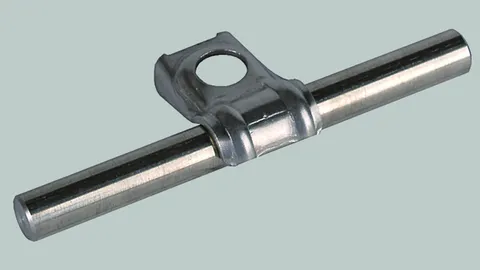

Clamping piece with square hole 11 mm and truss head screw.

KS Connectors

Clamping screw connector (KlemmSchrauben-Verbinder) for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system.

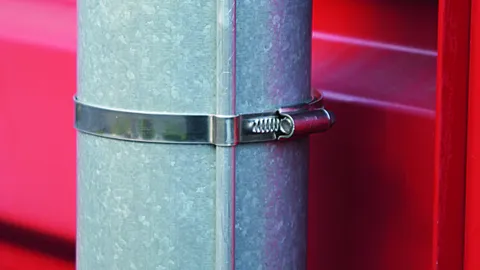

Plastic Conductor Holders for Downpipes

For insulated fixing of earth entries on metal downpipes.
Holder with clamping part for fixing the tensioning strap (dimension 14 x 0.3 mm).

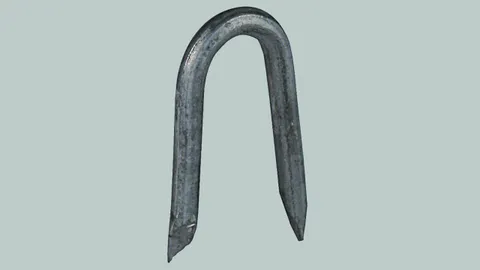

Staples

Staples for fixing conductors on objects like wooden masts.
