SPD VT2

  • Prewired complete unit consisting of a base part and plug-in protection modules
  • High discharge capacity due to heavy-duty zinc oxide varistors / spark gaps
  • High reliability due to "Thermo Dynamic Control" SPD monitoring device

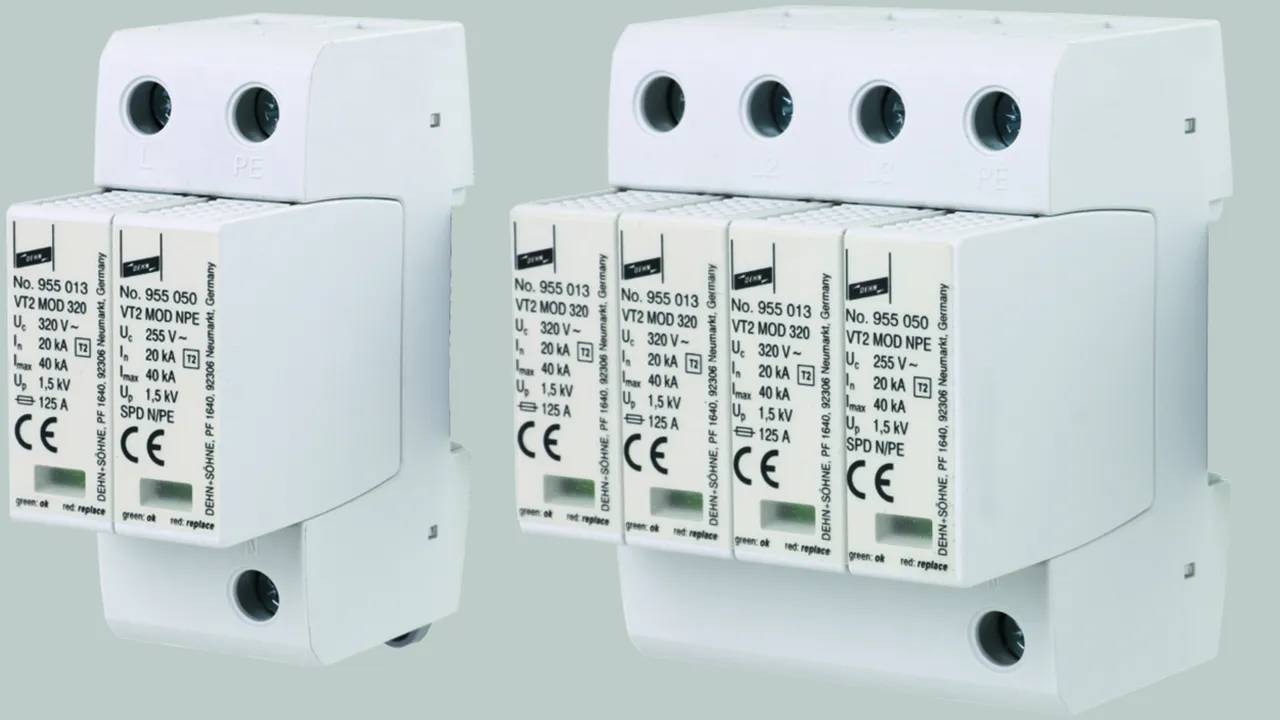

SPD VT2 TT (FM)

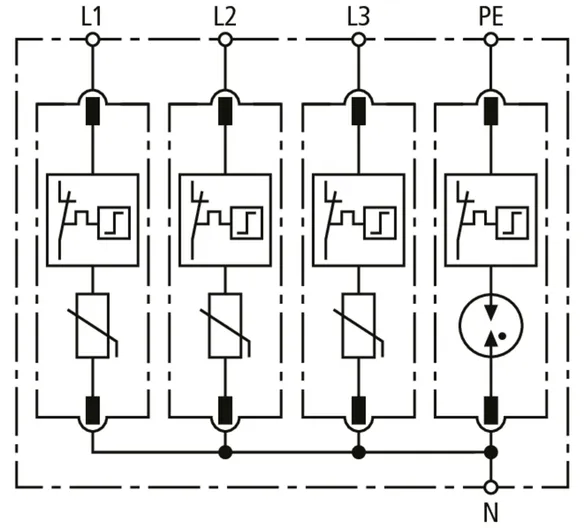

Modular surge arrester for use in TT and TN-S systems (3+1 configuration).

2 Products

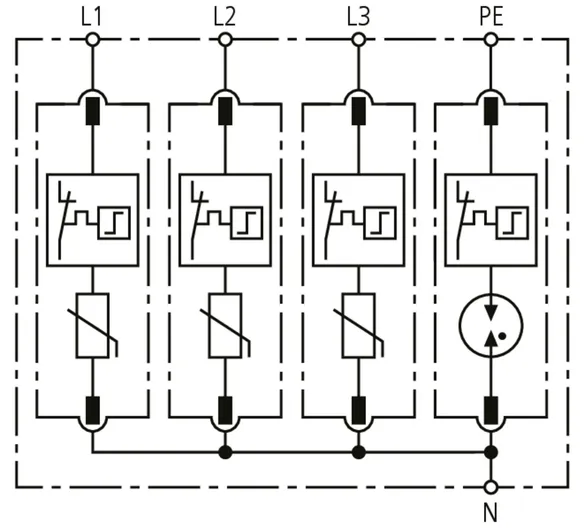

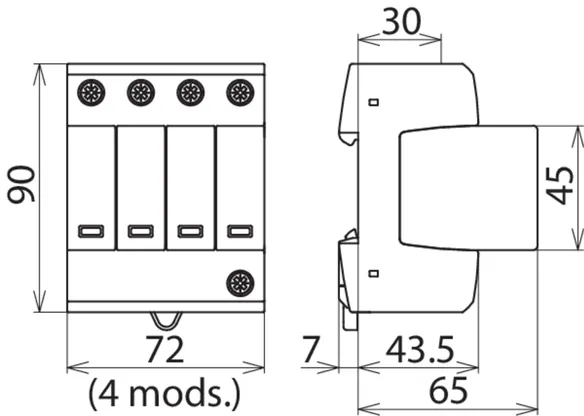

Part No. 955320 VT2 M TT 320

GTIN 4013364369108, Customs tariff No.: 85363030, Gross weight: 442.00 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard M TT 320 FM surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
With remote signalling contact
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: VT2 M TT 320
Part No.: 955320
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL

Product 955320 was added to Notepad.

Product 955320 was added to the cart.

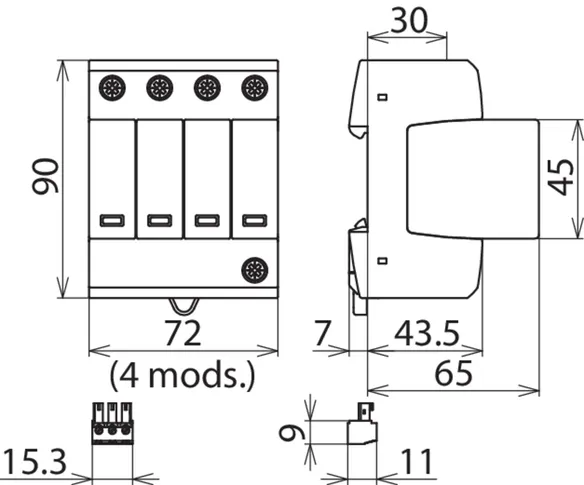

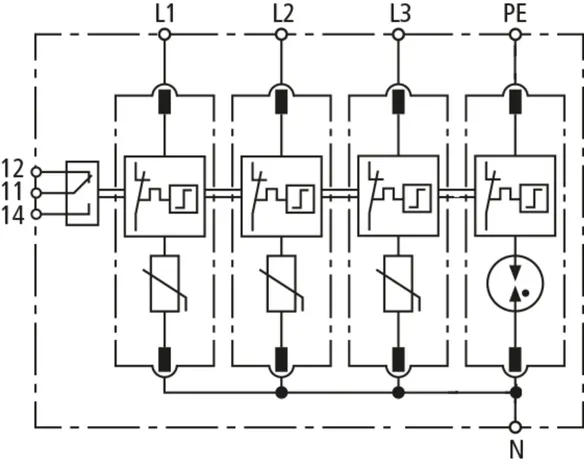

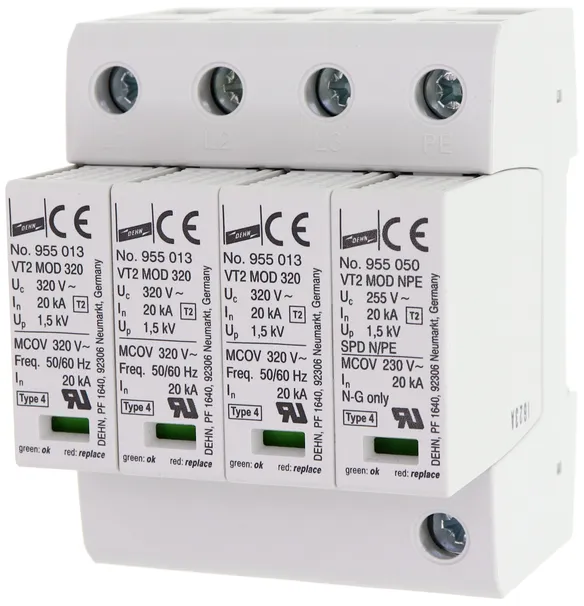

Part No. 955325 VT2 M TT 320 FM

GTIN 4013364369122, Customs tariff No.: 85363030, Gross weight: 450.00 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard M TT 320 FM surge arrester
Modular and pluggable four-pole surge arrester
for TT and TN-S systems, width: 4 modules
With remote signalling contact
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: VT2 M TT 320 FM
Part No.: 955325
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL
Type of remote signalling contact changeover contact

Product 955325 was added to Notepad.

Product 955325 was added to the cart.

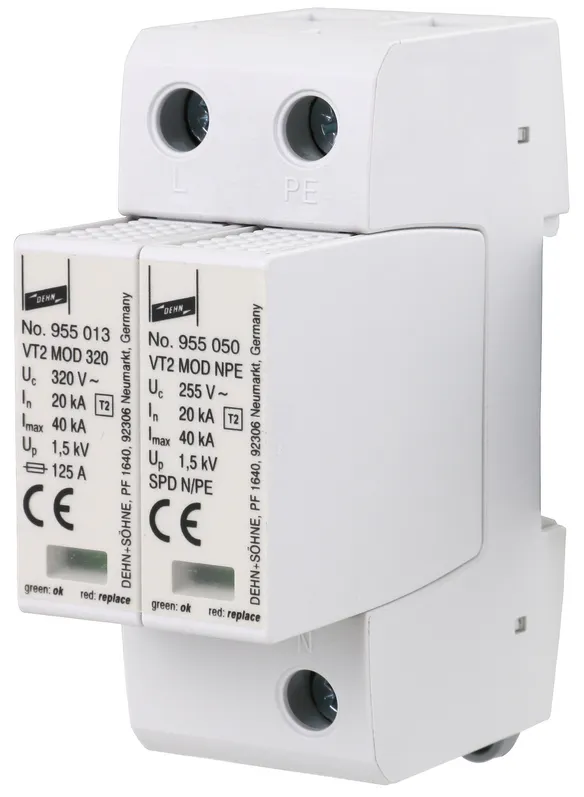

SPD VT2 TT 2P (FM)

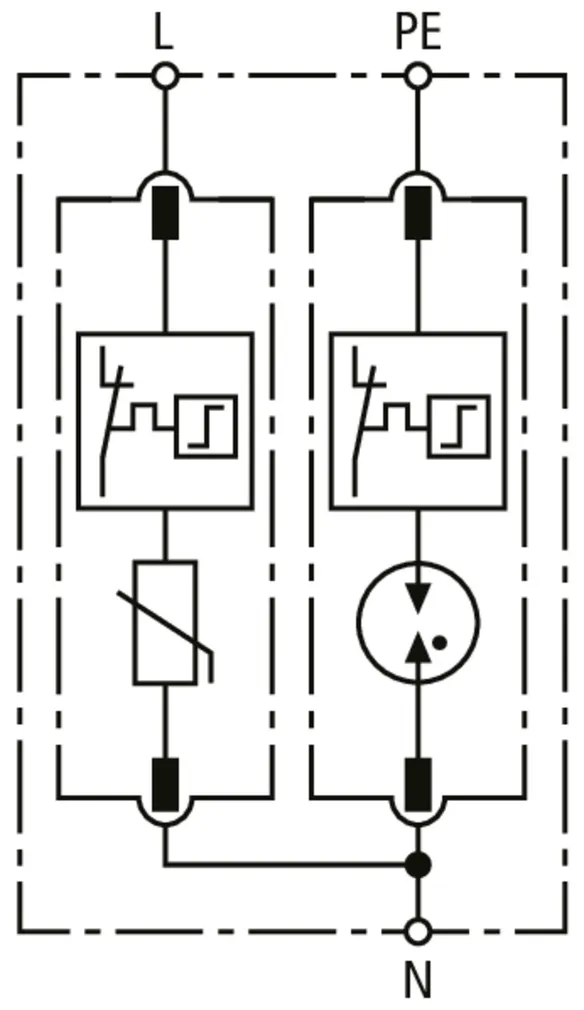

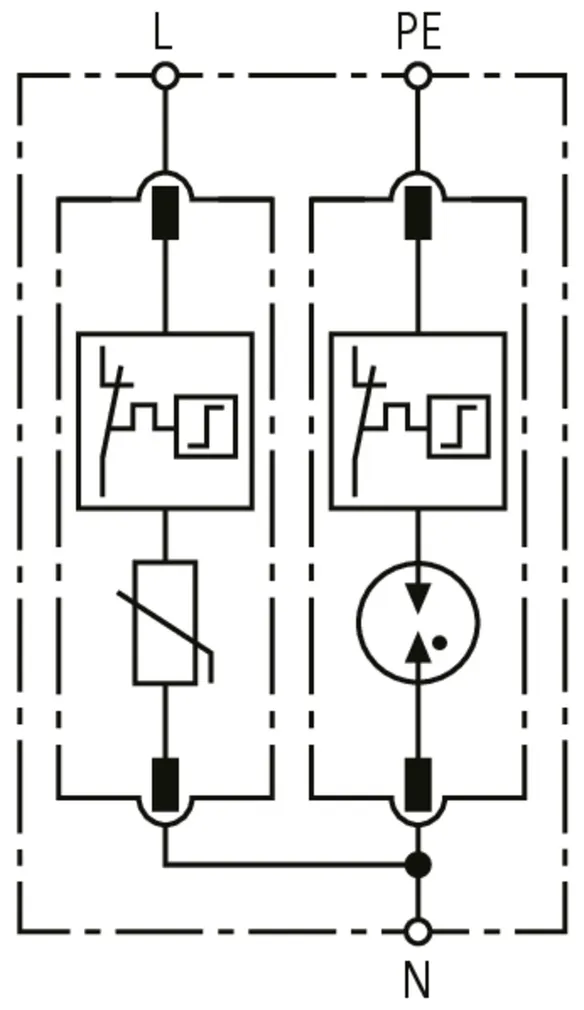

Modular surge arrester for single-phase TT and TN systems (1+1 configuration); with floating remote signalling contact.

2 Products

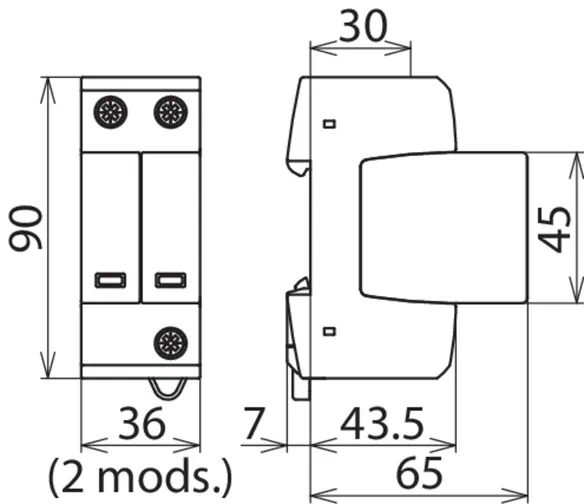

Part No. 955130 VT2 M TT 2P 320

GTIN 4013364369115, Customs tariff No.: 85363030, Gross weight: 263.00 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard M TT 2P 320 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TT and TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: VT2 M TT 2P 320
Part No.: 955130
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL

Product 955130 was added to Notepad.

Product 955130 was added to the cart.

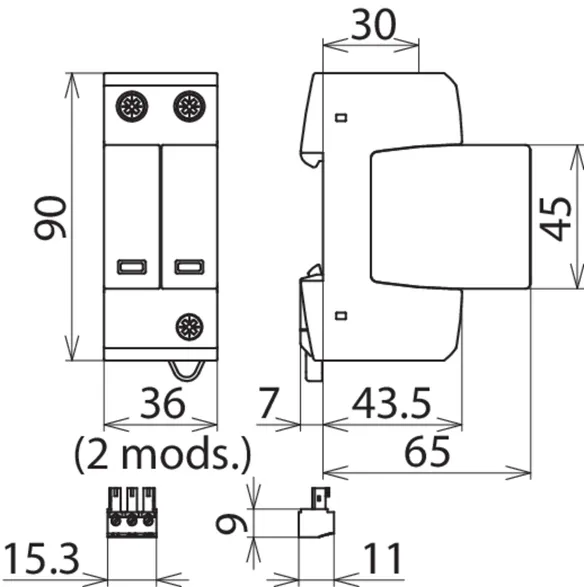

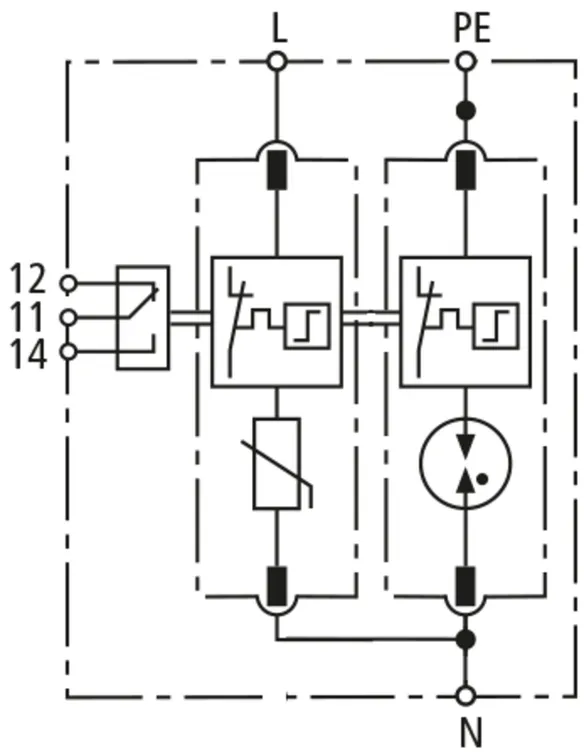

Part No. 955135 VT2 M TT 2P 320 FM

GTIN 4013364369092, Customs tariff No.: 85363030, Gross weight: 269.20 g, PU: 1.00 pc(s)


Images

Additional information

DEHNguard M TT 2P 320 FM surge arrester
Modular and pluggable two-pole surge arrester
for single-phase 230 V TT and TN systems, width: 2 modules
With remote signalling contact
Type 2 SPD according to EN 61643-11
Max. continuous operating voltage: 320 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 20 kA
Short circuit strength: 25 kArms
Energy-coordinated according to IEC 62305-4
with arresters of the Red/Line series
Fault indication

Brand: DEHN
Type: VT2 M TT 2P 320 FM
Part No.: 955135
or equivalent.

Certificates



Technical data

SPD according to EN 61643-11 / IEC 61643-11 type 2 / class II
Max. continuous operating voltage (a.c.) [L-N] (UC ) 320 V (50 / 60 Hz)
Nominal discharge current (8/20 µs) (In ) 20 kA
Max. discharge current (8/20 µs) (Imax ) 40 kA
Lightning impulse current (10/350 µs) [N-PE] (Iimp ) 12 kA
Voltage protection level [L-N]/[N-PE] (UP ) ≤ 1.5 / ≤ 1.5 kV
Max. mains-side overcurrent protection 125 A gG
Approvals KEMA, UL
Type of remote signalling contact changeover contact

Product 955135 was added to Notepad.

Product 955135 was added to the cart.
