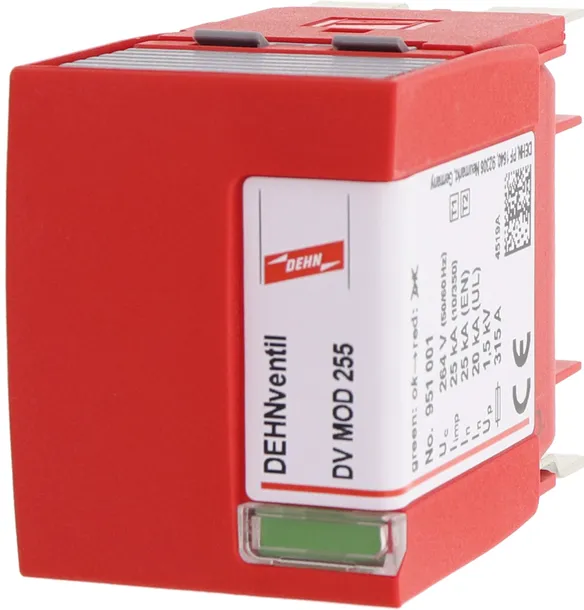

Protection Module for DEHNventil modular

  • High discharge capacity due to powerful creepage discharge spark gap
  • Maximum system availability due to RADAX Flow follow current limitation
  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state / fault indication by green / red indicator flag in the inspection window

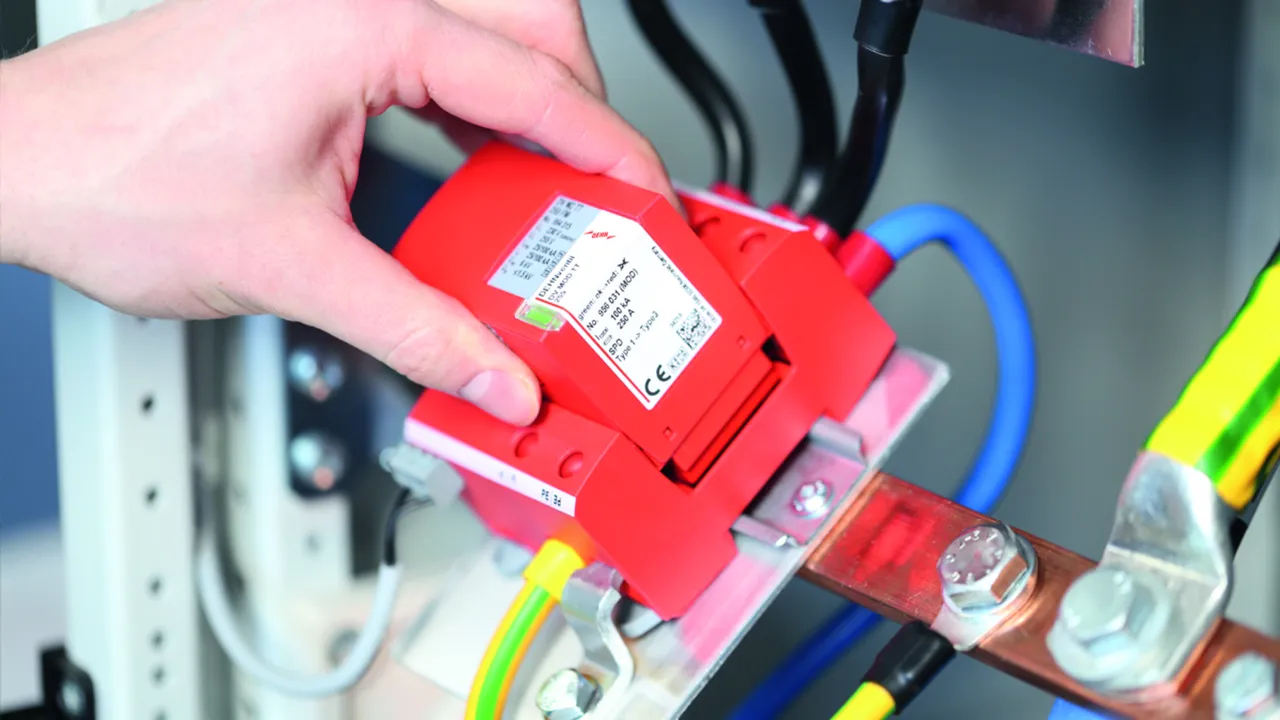

  • The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover
In multipole protective circuits, we recommend replacing the complete set of protection modules when one module fails.

Details

lorem ipsum

RAC Spark Gap Protection Module

5 Products

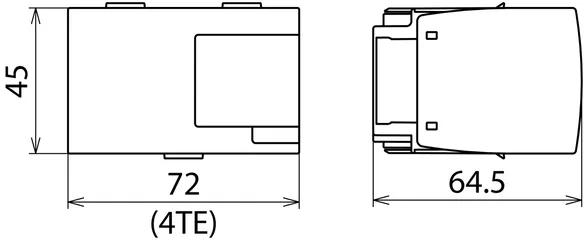

Part No. 954030 DV MOD TNC 255

GTIN 4013364410282, Customs tariff No.: 85363090, Gross weight: 269.21 g, PU: 1.00 pc(s)


Images

Additional information

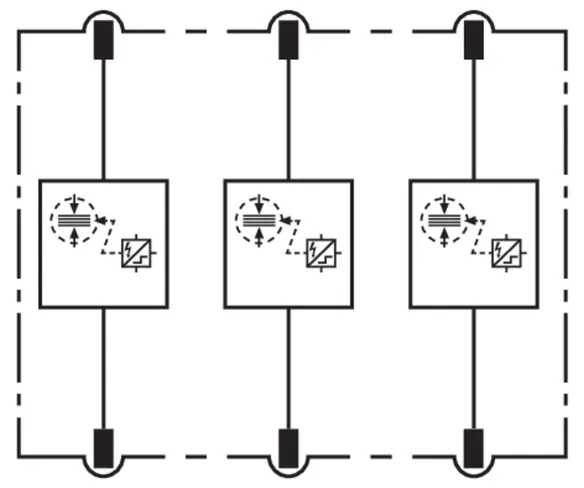

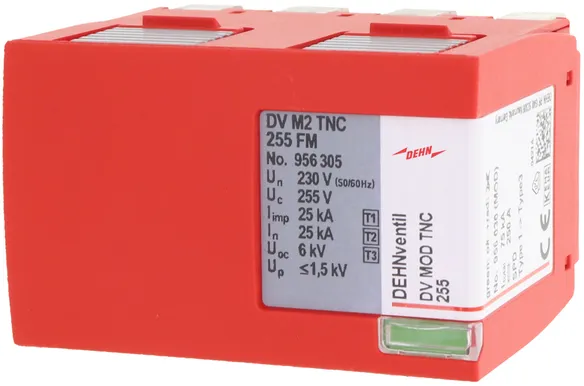

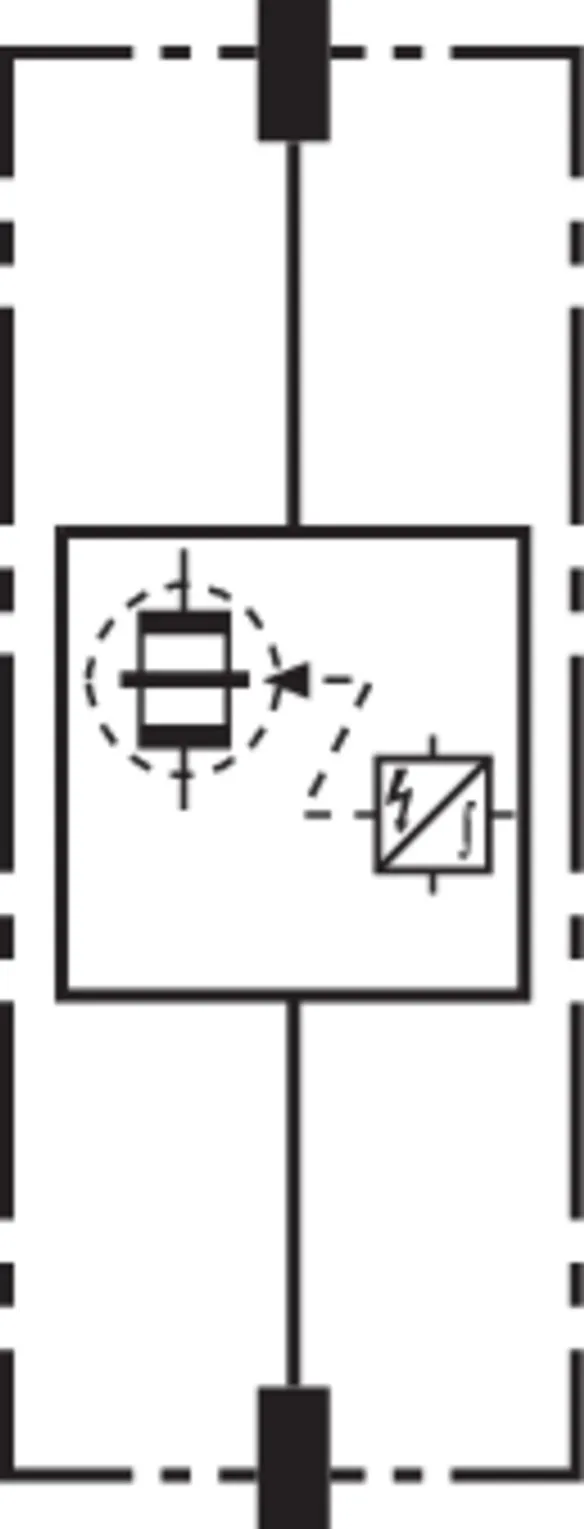

DV MOD TNC 255 spark-gap-based protection module
Spark-gap-based protection module for type 1 + type 2 + type 3
arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA (prosp.)

Brand: DEHN
Type: DV MOD TNC 255
Part No.: 954030
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 / 75 kA

Product 954030 was added to Notepad.

Product 954030 was added to the cart.

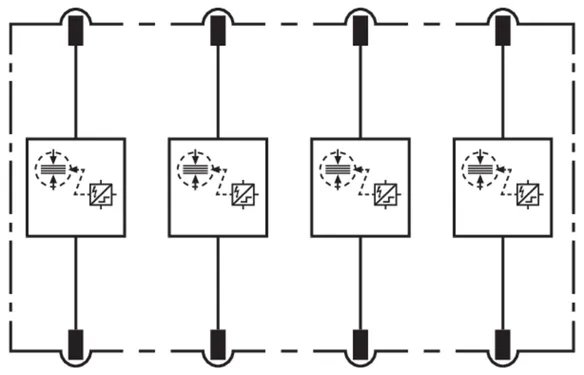

Part No. 954040 DV MOD TNS 255

GTIN 4013364410299, Customs tariff No.: 85363090, Gross weight: 333.70 g, PU: 1.00 pc(s)


Images

Additional information

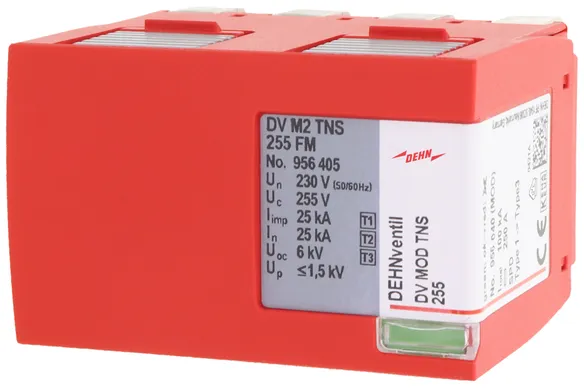

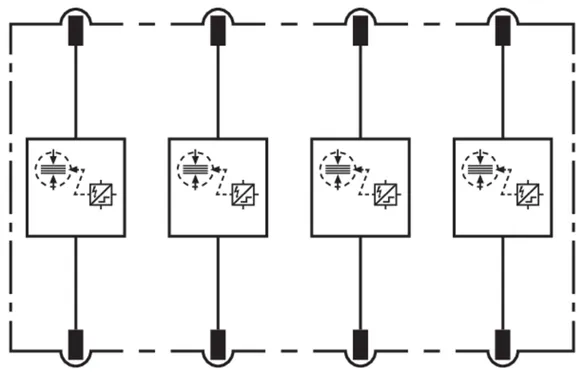

DV MOD TNS 255 spark-gap-based protection module
Spark-gap-based protection module for type 1 + type 2 + type 3
arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA (prosp.)

Brand: DEHN
Type: DV MOD TNS 255
Part No.: 954040
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 / 75 kA

Product 954040 was added to Notepad.

Product 954040 was added to the cart.

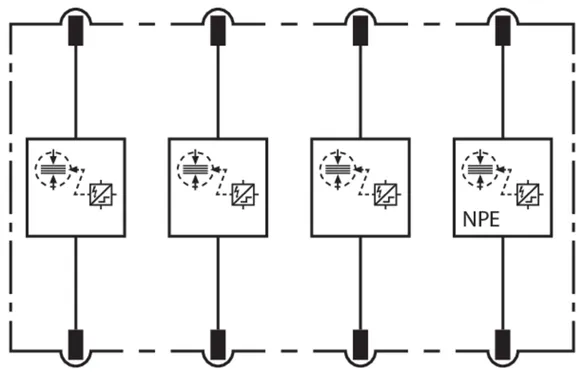

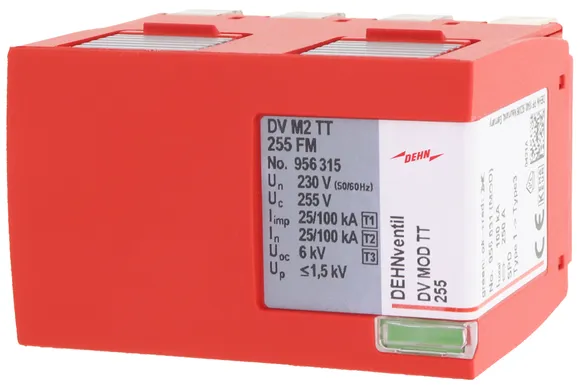

Part No. 954031 DV MOD TT 255

GTIN 4013364410275, Customs tariff No.: 85363090, Gross weight: 346.83 g, PU: 1.00 pc(s)


Images

Additional information

DV MOD TT 255 spark-gap-based protection module
Spark-gap-based protection module for type 1 + type 2 + type 3
arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA (prosp.)

Brand: DEHN
Type: DV MOD TT 255
Part No.: 954031
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 / 75 kA

Product 954031 was added to Notepad.

Product 954031 was added to the cart.

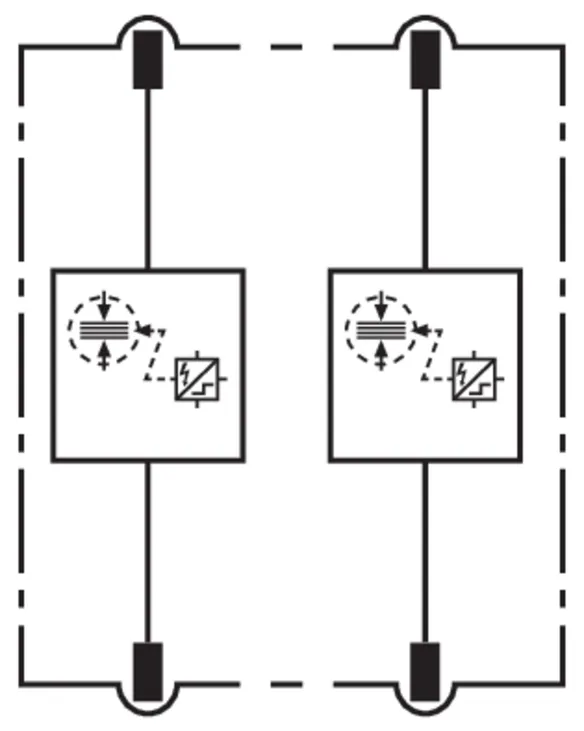

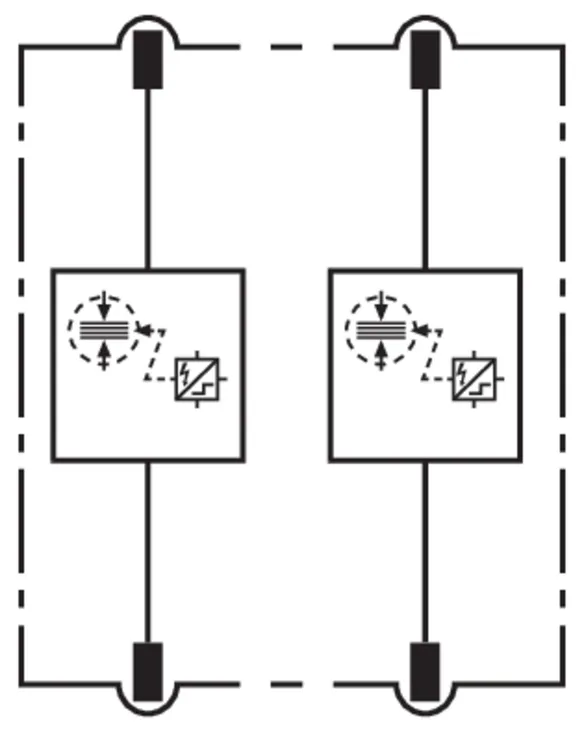

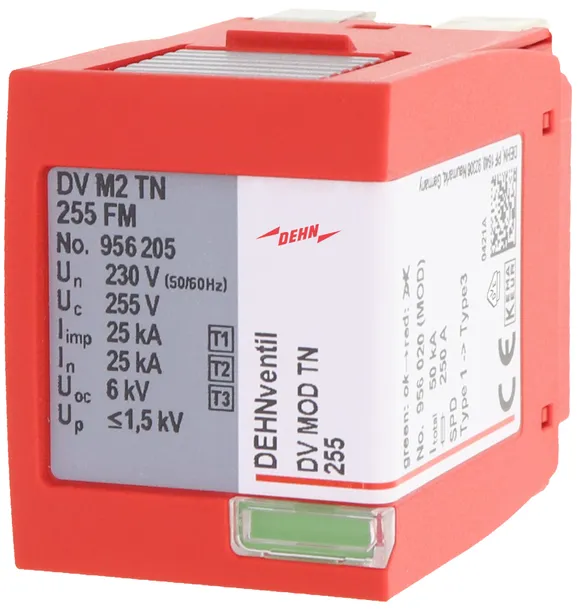

Part No. 954020 DV MOD TN 255

GTIN 4013364400870, Customs tariff No.: 85363090, Gross weight: 173.30 g, PU: 1.00 pc(s)


Images

Additional information

DV MOD TN 255 spark-gap-based protection module
Spark-gap-based protection module for type 1 + type 2 + type 3
arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA (prosp.)

Brand: DEHN
Type: DV MOD TN 255
Part No.: 954020
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 954020 was added to Notepad.

Product 954020 was added to the cart.

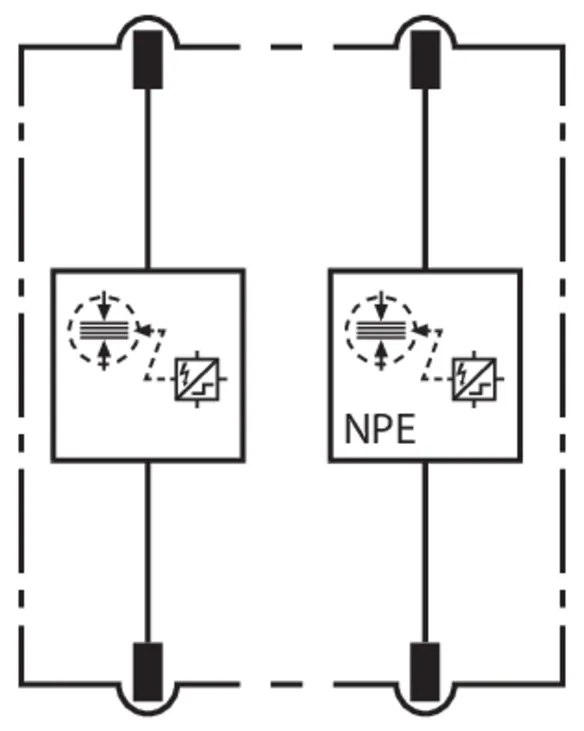

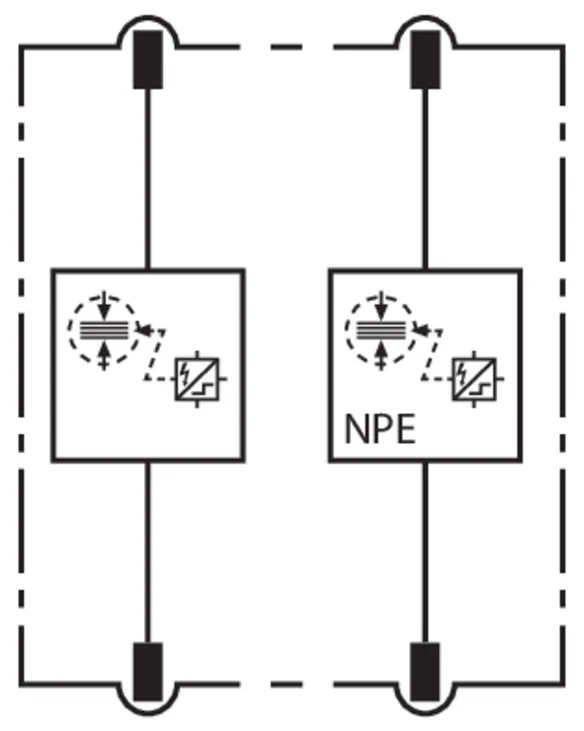

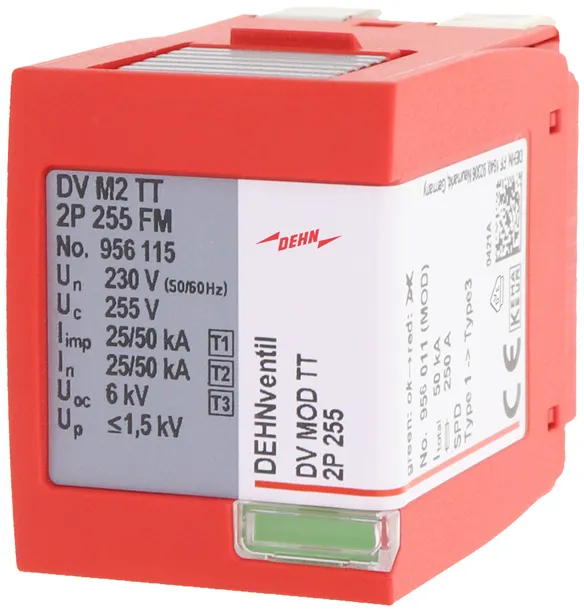

Part No. 954011 DV MOD TT 2P 255

GTIN 4013364400887, Customs tariff No.: 85363090, Gross weight: 191.83 g, PU: 1.00 pc(s)


Images

Additional information

DV MOD TT 2P 255 spark-gap-based protection module
Spark-gap-based protection module for type 1 + type 2 + type 3
arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA (prosp.)

Brand: DEHN
Type: DV MOD TT 2P 255
Part No.: 954011
or equivalent.

Certificates



Wave breaker function

In the case of spark-gap-based type 1 arresters, the entire current flows through the type 1 arrester during the discharge process. Like a wave breaker, the incoming energy is greatly broken down, which significantly relieves the downstream SPDs. All type 1 arresters in the Red/Line product range feature the WBF wave breaker function.

Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 954011 was added to Notepad.

Product 954011 was added to the cart.
