Plastic base plates

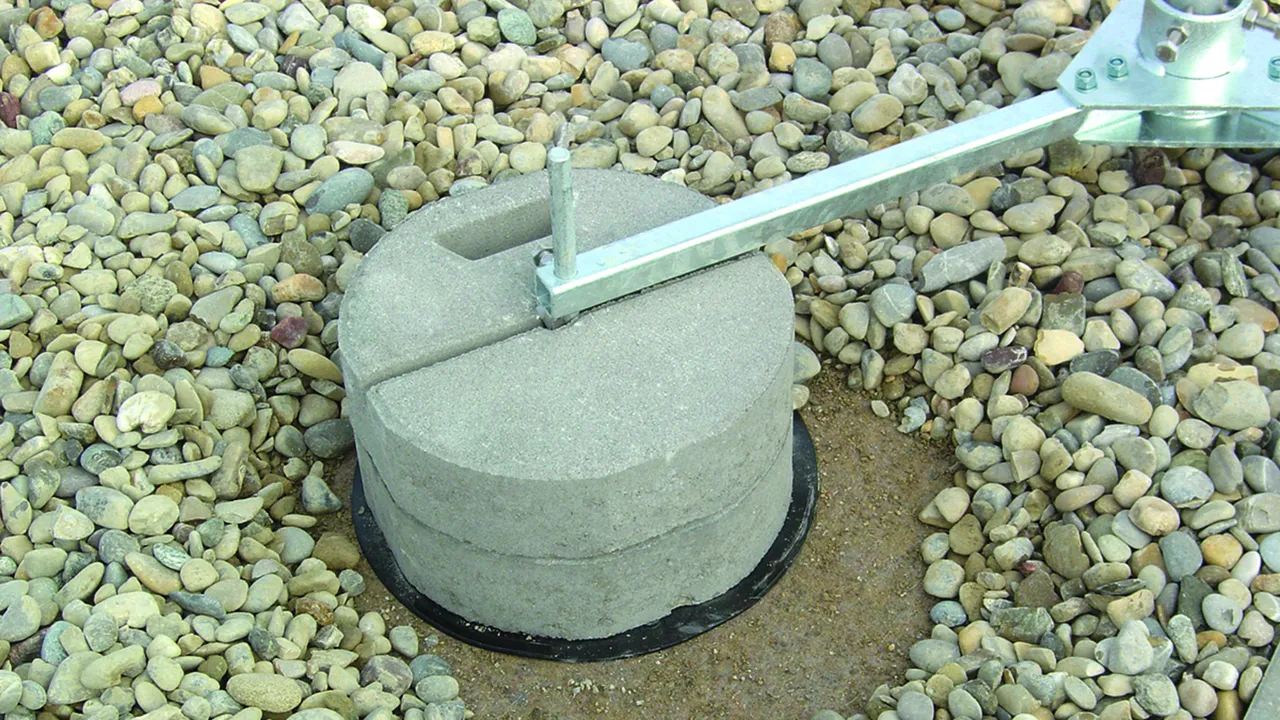

To protect the roof sheeting under the concrete base.

Large

For concrete bases (Part Nos. 102 010, 102 002), weight 17 kg.

1 Product

Part No. 102050 ULP KS D370 SW

GTIN 4013364045996, Customs tariff No. (EU): 39269097, Gross weight: 217.00 g, PU: 1.00 pc(s)


Images

Additional information

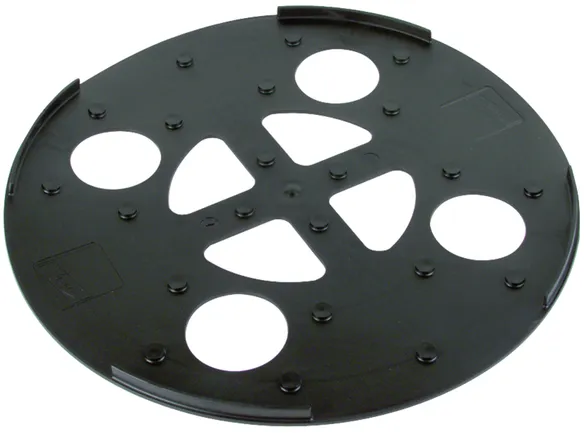

Base plate (large) to protect the roof sheeting
Base plate to protect the roof sheeting under the concrete base

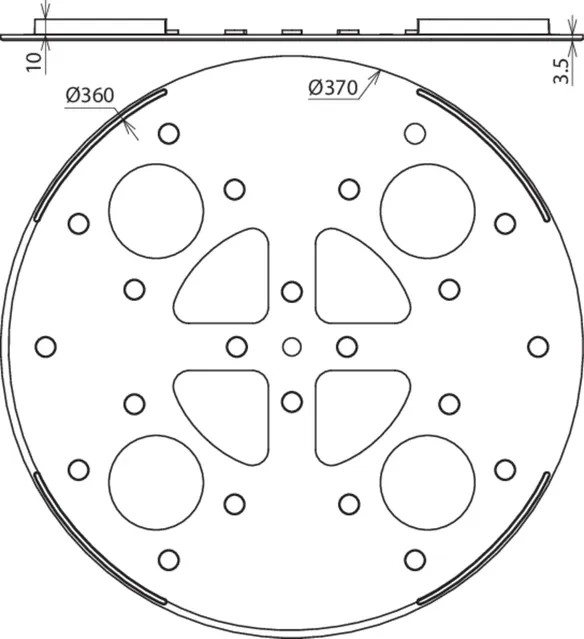

Outside diameter Ø : 370 mm
Inside diameter Ø : 360 mm
Material: EVA
Colour: black ●

Brand: DEHN
Type: ULP KS D370 SW
Part No.: 102050
or equivalent.



Technical data

Outside diameter Ø 370 mm
Inside diameter Ø 360 mm
Material EVA
Colour black ●

Product 102050 was added to Notepad.

Product 102050 was added to the cart.


Small

For concrete bases (Part No. 102 075, 102 003), weight 8.5 kg.

1 Product

Part No. 102060 ULP KS D280 SW

GTIN 4013364094987, Customs tariff No. (EU): 39269097, Gross weight: 139.90 g, PU: 1.00 pc(s)


Images

Additional information

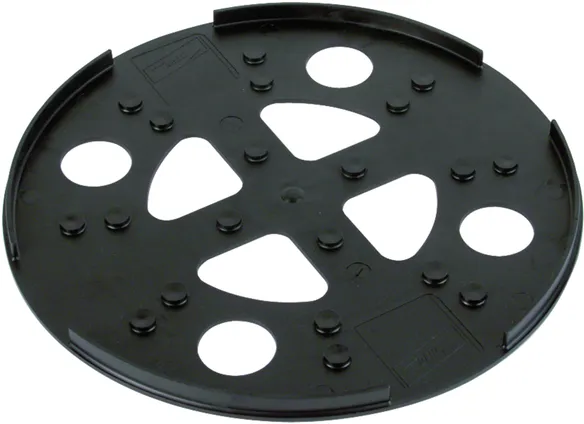

Base plate (small) to protect the roof sheeting
Base plate to protect the roof sheeting under the concrete base

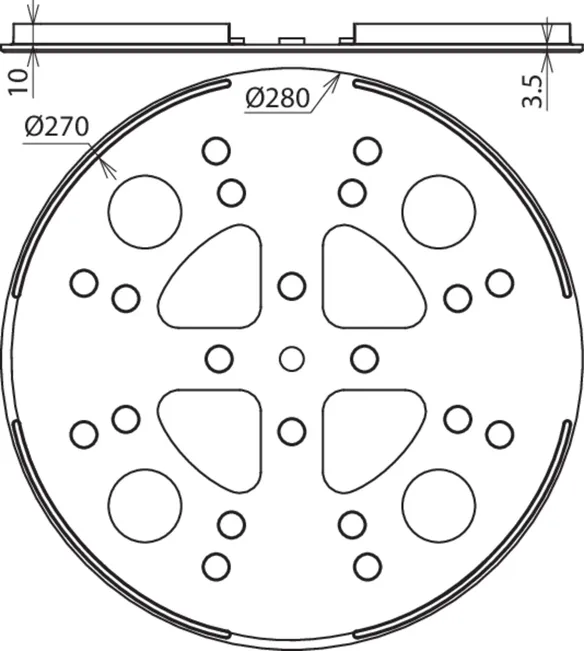

Outside diameter Ø : 280 mm
Inside diameter Ø : 270 mm
Material: EVA
Colour: black ●

Brand: DEHN
Type: ULP KS D280 SW
Part No.: 102060
or equivalent.



Technical data

Outside diameter Ø 280 mm
Inside diameter Ø 270 mm
Material EVA
Colour black ●

Product 102060 was added to Notepad.

Product 102060 was added to the cart.
