Wedge Connector

With latches for T, cross and parallel connections for use in concrete foundations.

1 Product

Part No. 308001 KV FE UNI

GTIN 4013364027947, Customs tariff No. (EU): 85389099, Gross weight: 220.80 g, PU: 25.00 pc(s)


Images

Additional information

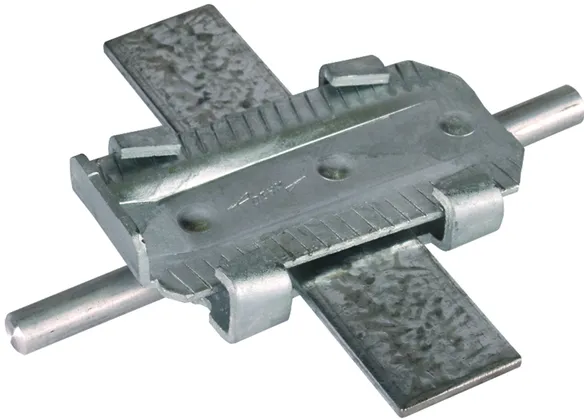

Wedge connector for T, cross and parallel connections
Wedge connector

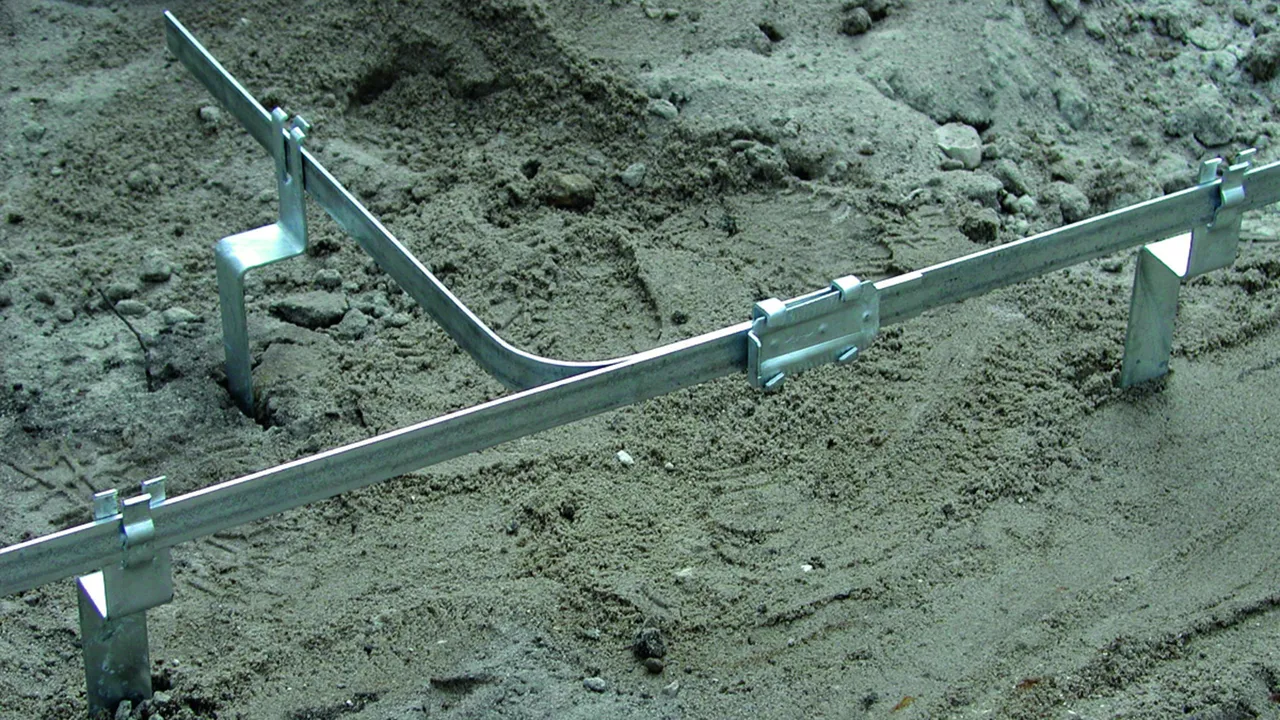

For T, cross and parallel connections for use in
concrete foundations
With lock-in position in the wedge
Material: St/tZn
Clamping range Rd / Fl: 10 / 30 x 3.5-40 x 4 mm
Clamping range Fl / Fl: 30 x 3.5-40 x 4 / 30 x 3.5-40 x 4 mm
Material of wedge: St/tZn

Brand: DEHN
Type: KV FE UNI
Part No.: 308001
or equivalent.



Technical data

Material St/tZn
Clamping range Rd / Fl 10 / 30 x 3.5-40 x 4 mm
Clamping range Fl / Fl 30 x 3.5-40 x 4 / 30 x 3.5-40 x 4 mm
