Earthing and Short-Circuiting Devices for Crane Conductor Bars

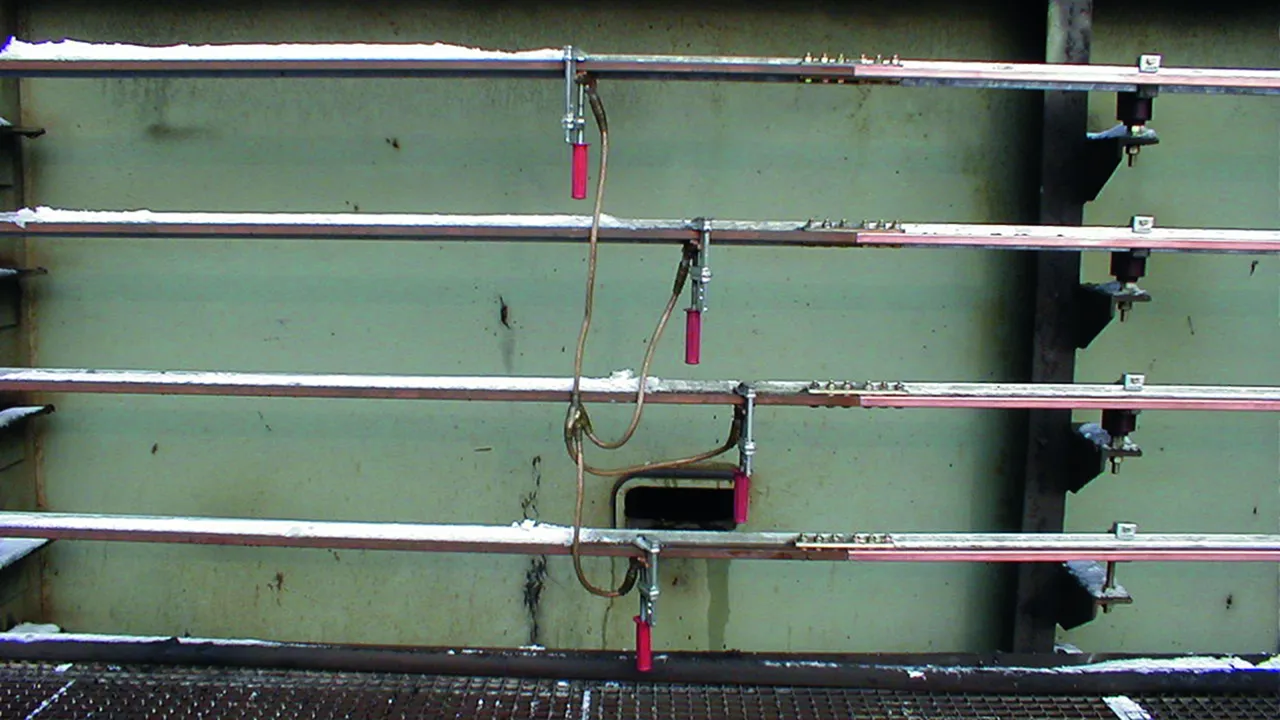

  • For insulated or bare conductor bars of cranes and lifting equipment
  • Allows to lock the clamping range of the clamps in several positions
  • Waterproof, plastic-sheathed cable entries and node unit, with additional ant-kink protection
  • Other cable lengths can be selected online via the earthing and short-circuiting configurator

Details

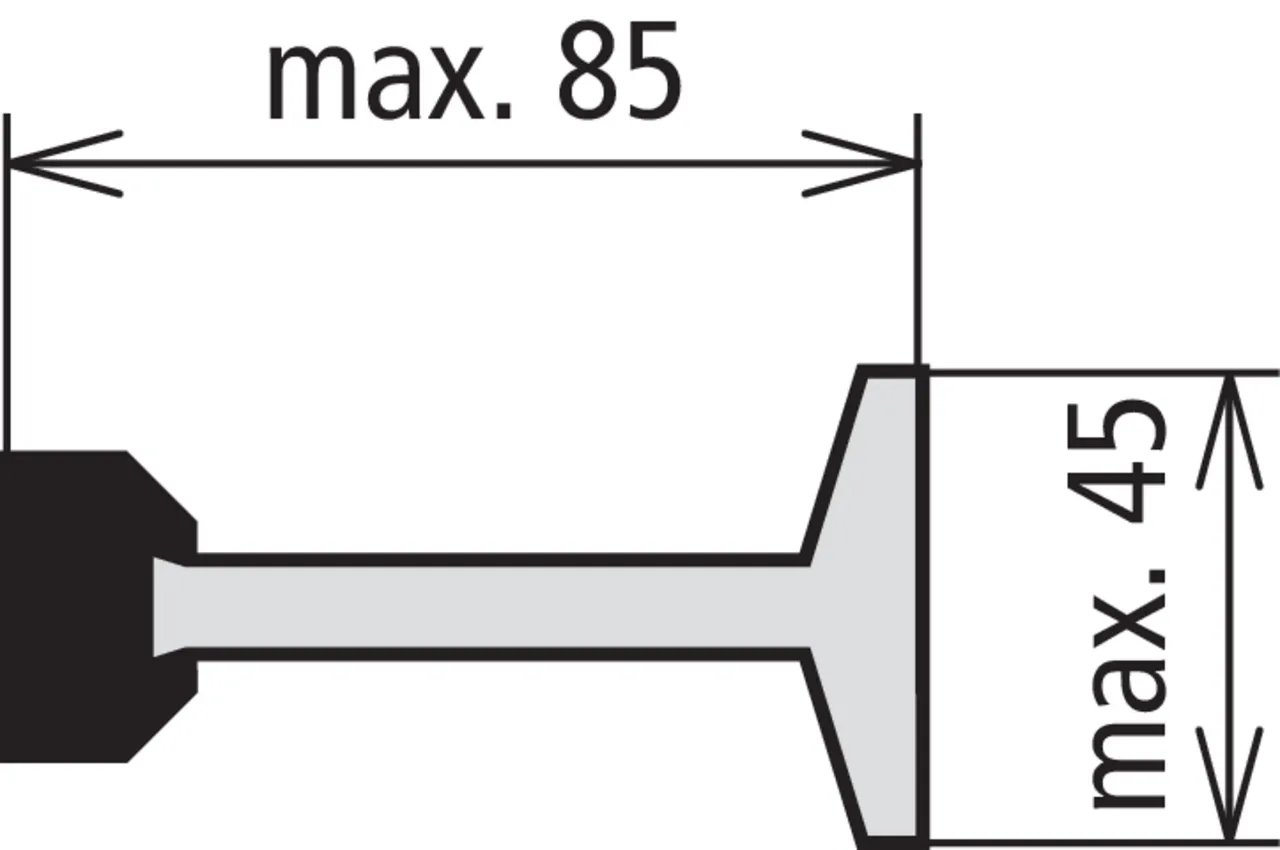

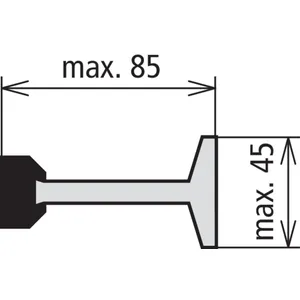

Bare conductor bar
lorem ipsum

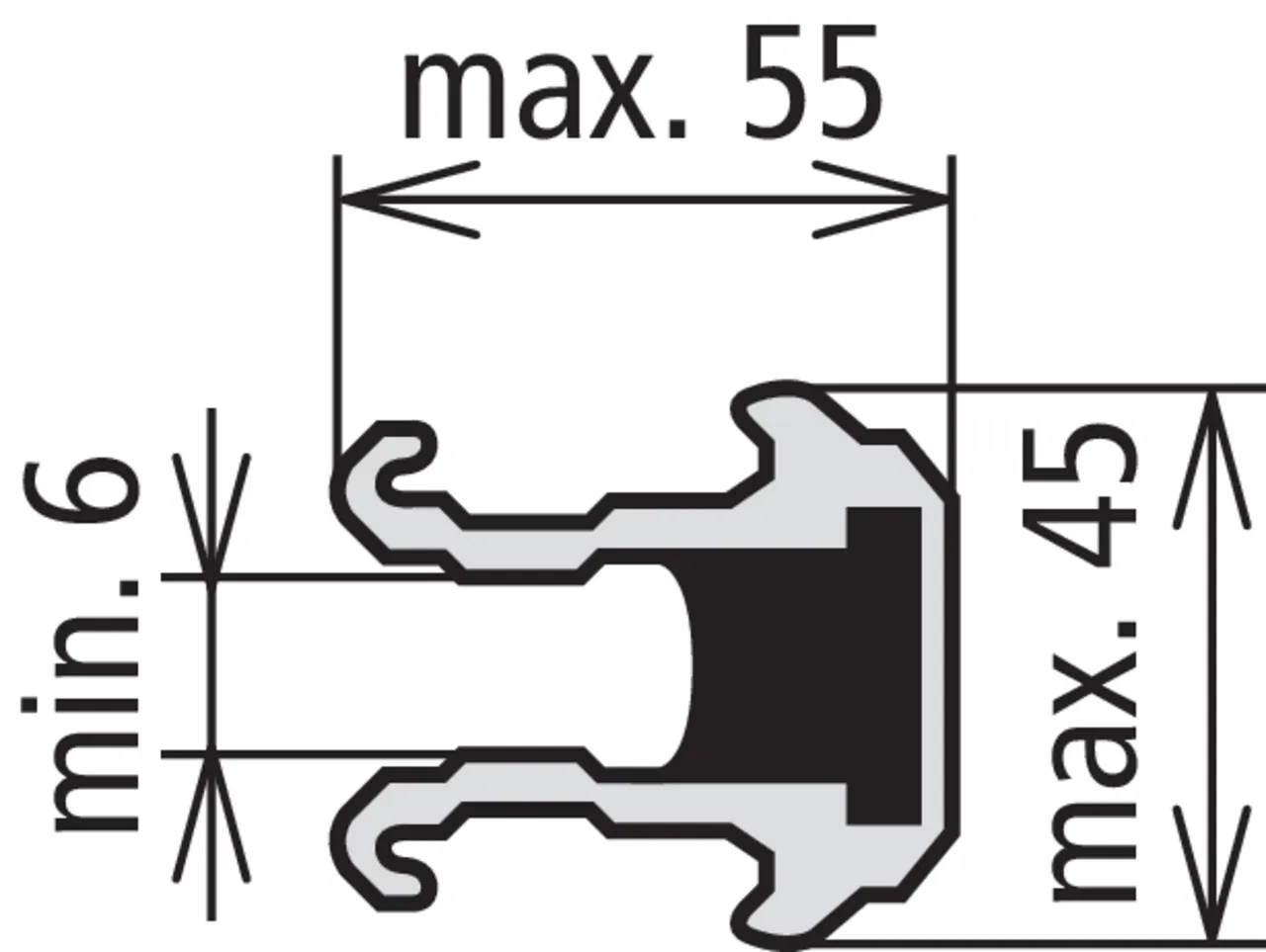

Insulated conductor bar
lorem ipsum

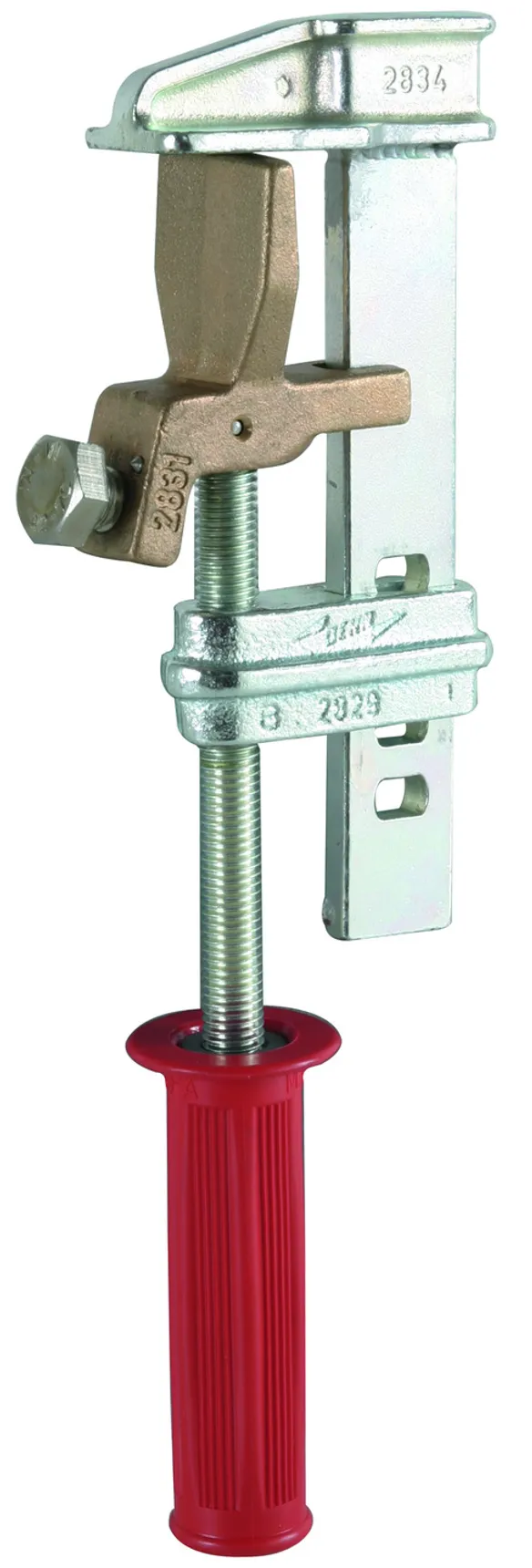

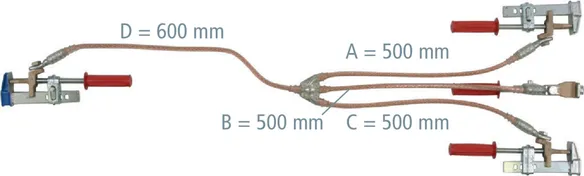

With Screw Clamps for insulated Conductor Bars

3 Products

Part No. VH8QTCZ EKV3 25IS ZK VH8QTCZ

GTIN 4013364163775, Customs tariff No. (EU): 85359000, Gross weight: 5.59 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

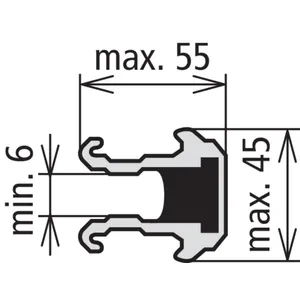

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VH8QTCZ was added to Notepad.

Product VH8QTCZ was added to the cart.

Part No. VKB2Q6J EKV3 35IS ZK VKB2Q6J

GTIN 4013364163829, Customs tariff No. (EU): 85359000, Gross weight: 5.75 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VKB2Q6J was added to Notepad.

Product VKB2Q6J was added to the cart.

Part No. VP6YV4T EKV3 50IS ZK VP6YV4T

GTIN 4013364162686, Customs tariff No. (EU): 85359000, Gross weight: 6.30 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Clamping range 55 mm
Max. short-circuit current Ik 0.5 s 14.0 kA
Max. short-circuit current Ik 1 s 9.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VP6YV4T was added to Notepad.

Product VP6YV4T was added to the cart.

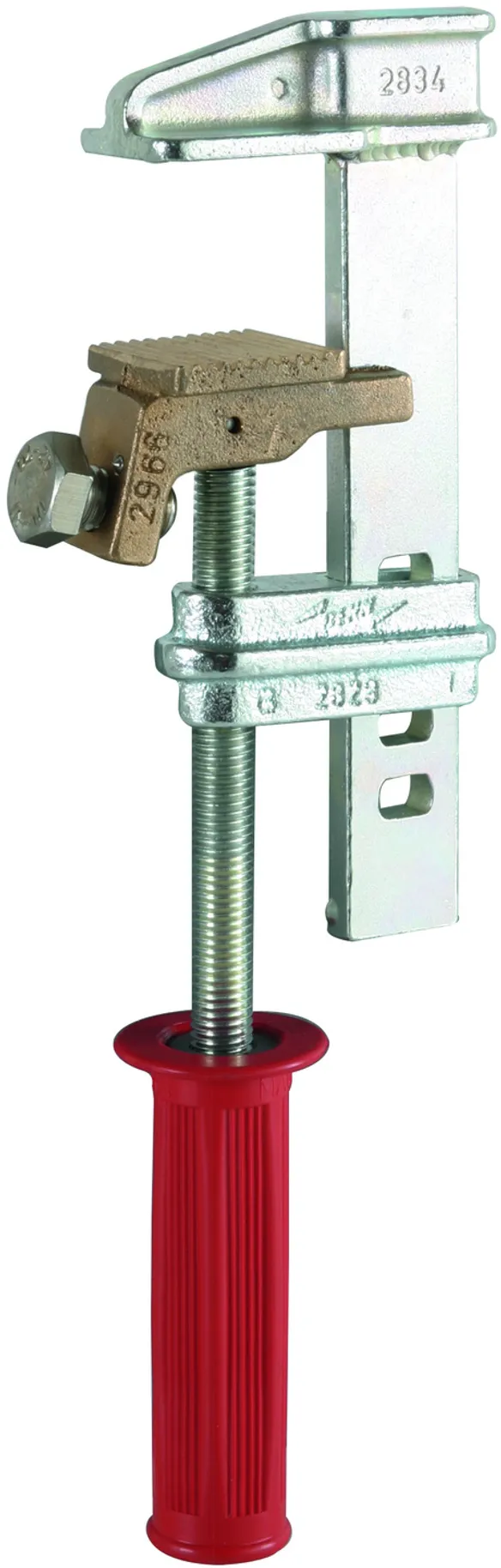

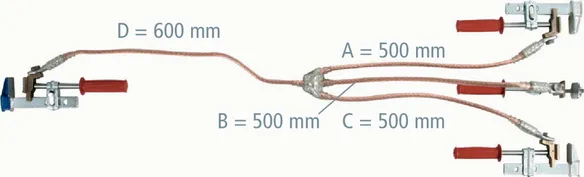

With Screw Clamps for bare Conductor Bars

2 Products

Part No. VQKTK4T EKV3 25BS ZK VQKTK4T

GTIN 4013364163768, Customs tariff No. (EU): 85359000, Gross weight: 5.40 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Clamping range 85 mm
Max. short-circuit current Ik 0.5 s 7.0 kA
Max. short-circuit current Ik 1 s 4.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VQKTK4T was added to Notepad.

Product VQKTK4T was added to the cart.

Part No. VN63A91 EKV3 35BS ZK VN63A91

GTIN 4013364163812, Customs tariff No. (EU): 85359000, Gross weight: 5.56 kg, PU: 1.00 pc(s)


Images

Additional information



Technical data

Clamping range 85 mm
Max. short-circuit current Ik 0.5 s 10.0 kA
Max. short-circuit current Ik 1 s 6.9 kA
Attention: Please state the relevant Variant No. when ordering.

Product VN63A91 was added to Notepad.

Product VN63A91 was added to the cart.
